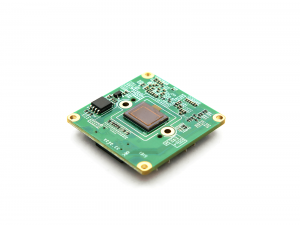

- SONY STARVIS SENSOR IMX327LQR-C
- Build in ISP Process
-
Open Source Driver and Application Demo
- On Board IR Sync Circuit
- On Board IR-CUT Control Circuit
- 2lane MIPI（CSI-2）Interface
- YUV422-8bit UYVY format
- DOL WDR
- Support Raspberry Pi、Nvidia Jetson、RK3399、IMX6、IMX8、ZYNQ，Custom adpter board is required
Thechnical Detail
| Technical Details | |
| SENSOR | |
| Sensor | SONY IMX327LQR-C STARVIS |
| Pixels | 2.07M pixels |
| Resolution | 1920*1080 |
| Image Size | Diagonal 6.46 mm (Type 1/2.8) |
| Unit Cell Size | 2.9um (H)*2.9um(V) |
| Output Format | RAW Bayer |
| Shutter Type | Rolling Shutter |
| SNR1s Value | 0.18lx |
| ISP | |
| Frame Rate | 1080p@25 / 1080p@30fps |
| Exposure | Auto or Manual |
| White Balance | Auto or Manual |
| Shutter | 1/25(1/30)s to 1/50,000s |
| Slow Shutter | Support |
| Denoising | 2D/3D noise reduction |
| Image Setting | Brightness, Contrast, Sharpness, Saturation,Flip, Mirror |
| Image Enhancement | BLC, DOL-WDR |
| Day/Night Switch | Manual or IR-CUT filter with external trigger |
| Lens & IR-CUT | |
| Lens | MTV12 / MTV16 / CS |
| Lens Mount | M12*P0.5 / M16*P0.5 / CS，IRCUT is optional |
| Mounting Hole | 2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing |
| Interface | |
| PCB Connector | BTB connector:BTB050040-F1D |
| Communication Interface | IIC, 3.3VDC |
| Video Data Interface | MIPI:2 Data Lanes, CSI-2 YUV422-8bit Data Type, Bandwidth 1.188Gbps |
| IR-CUT Control | IR-CUT motor control, 3.3VDC |
| Day/Night External Trigger | 3.3VDC to 12VDC compatibility |
| General | |
| Operating Conditions(Bare PCB) | Performance guarantee temperature：-10℃~60℃, Humidity 95% or less, non-condensing
Operating guarantee temperature：-30℃~85℃, Humidity 95% or less, non-condensing |
| Power Supply | 3.3VDC |
| Power Consumption | 1.2W |
| Dimension | 38mm*38mm*8mm(not include lens and lens mount) |
IMX327LQR-C Spectral Sensitivity
Document
Board Dimension
