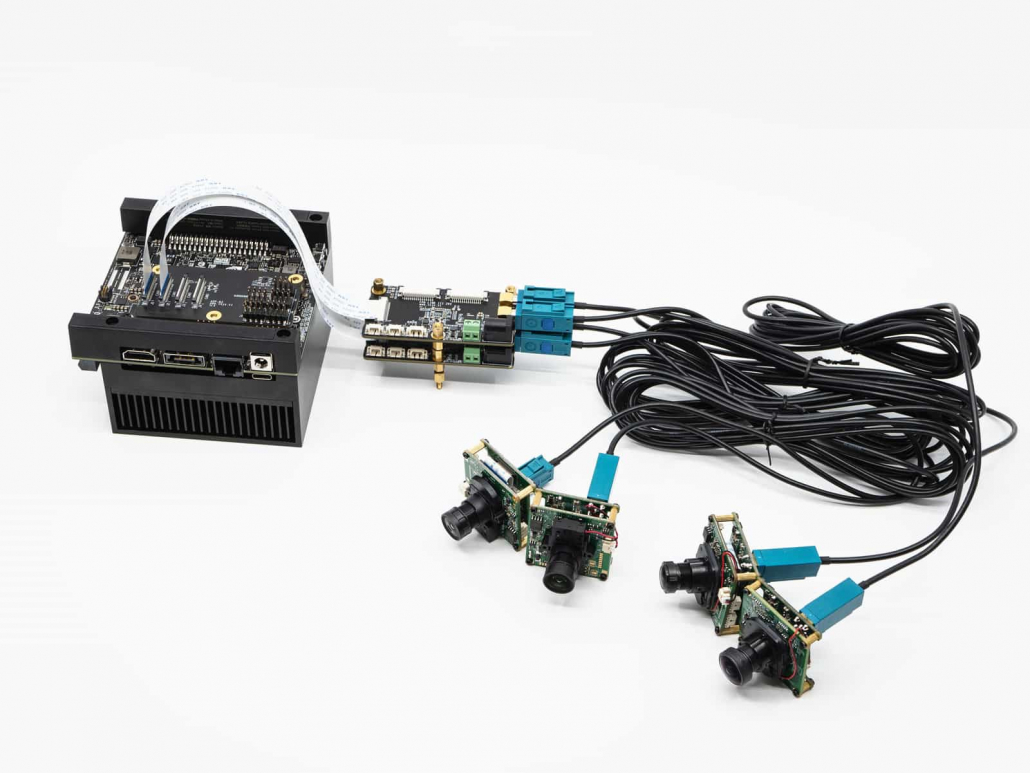

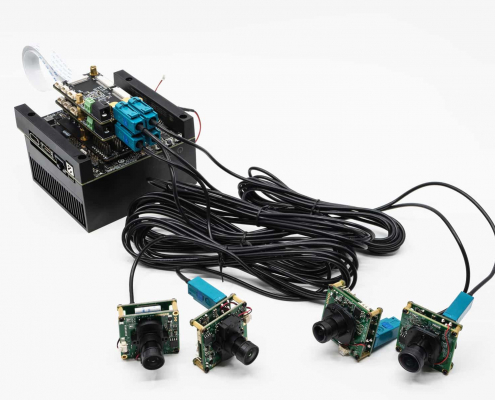

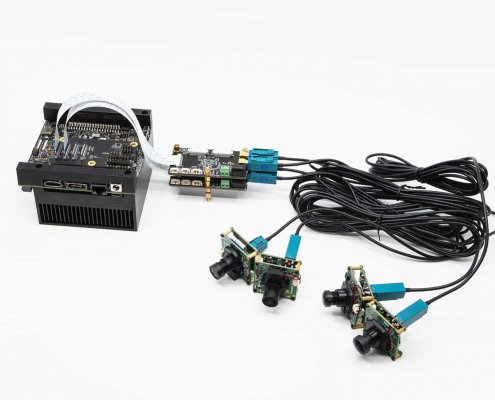

You are here: Home1 / Product2 / CS-FPD-XAVIER-nCAM Series Camera DevKit
- Support VEYE-MIPI-327、CS-MIPI-IMX307、CS-MIPI-SC132、VEYE-MIPI-IMX327S、VEYE-MIPI-IMX462、VEYE-MIPI-IMX385 camera module
- 1 to 8 camera can be choosed
- Support Jetson AGX XAVIER Developer Kit

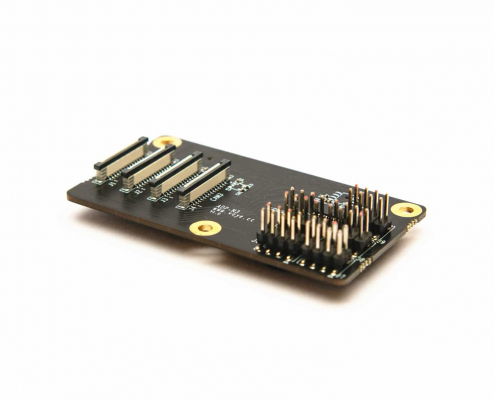

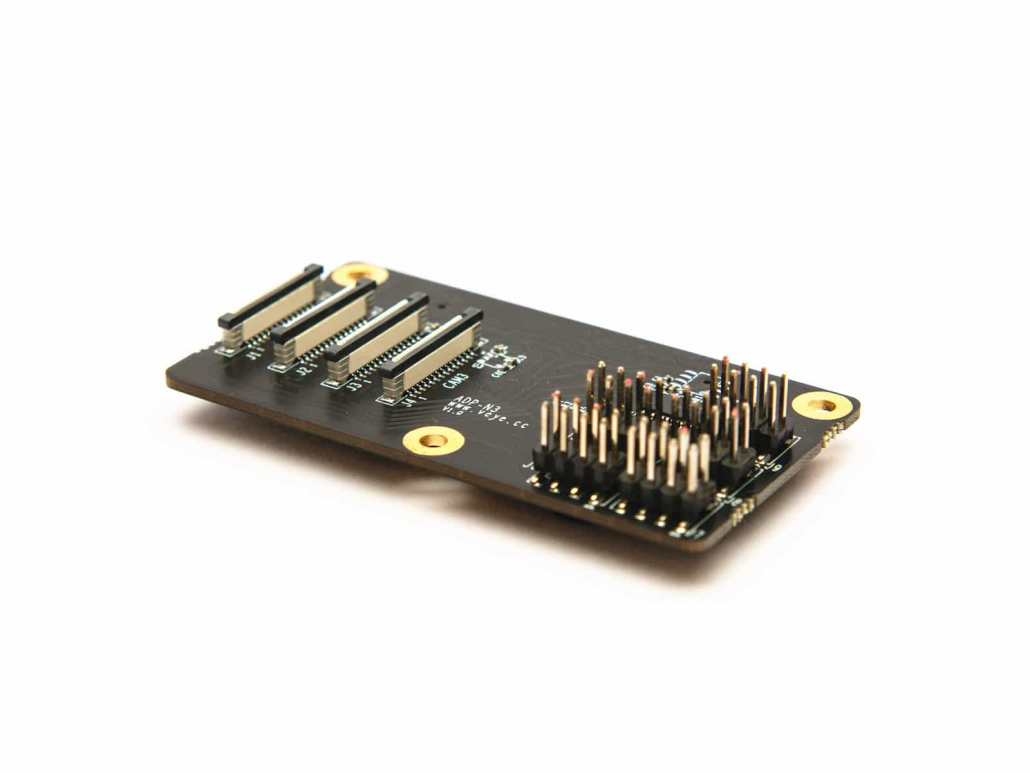

- FPD-LINK3-2RX can be placed on top of ADP-N3
- base on TI DS90UB953-Q1 / TSER953RHBT and DS90UB954-Q1 / TDES954RGZT
- MAX 8 meters transmission distance with RG174
- Part NO.
- CS-FPD-XAVIER-nCAM-IMX327 (n=[1-8]camera)
- CS-FPD-XAVIER-nCAM-IMX327S (n=[1-8]camera)
- CS-FPD-XAVIER-nCAM-IMX462 (n=[1-8]camera)
- CS-FPD-XAVIER-nCAM-IMX385 (n=[1-8]camera)
- CS-FPD-XAVIER-nCAM-IMX307 (n=[1-8]camera)
- CS-FPD-XAVIER-nCAM-SC132 (n=[1-8]camera)
Serializer Thechnical Detail
| Thechnical Detail (技术规格) |
| 2 MP MIPI® CSI-2 FPD-Link III serializer |
| IC PART NO. |
DS90UB953-Q1 / TSER953RHBT |
| Function |
Serializer |
| Input Compatibility |
MIPI CSI-2 |
| Output Compatibility |
FPD-Link III LVDS / V3Link SerDes |
| Interface |
|
| MIPI INPUT |
MIPI CSI-2 2lane (800Mbsp/lane max), J5 J6 SupportMIPI CSI-2 4lane (800Mbsp/lane max), J3 Support |
| MIPI INPUT Connector |
FFC socket（J3 J5），B2B Connector（J6） |
| LVDS OUTPUT |
FPD-Link III LVDS (4Gbps data rate) |
| LVDS OUTPUT Connector |
FAKRA Z Compatibility |
| MPIO |
Up to 4 Multi-function IO |
| Device Functional Modes |
| Clocking Mode |
Synchronous Mode， FPD-Link III Clock reference derived from deserializer |
| FPD-Link III Operating Mode |
CSI-2 Mode |
| Forward Channel Mode |
Synchronous Mode |
| Back Channel Mode |
Synchronous Mode |
| FPD-Link Line Rate |
4.0 Gbps （Link with FPD-LINK3-2RX） |
| Back Channel Rate |
50 Mbps （Link with FPD-LINK3-2RX） |
| General |
| Operating Conditions(Bare PCB) |
Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing |
| POC DC Power Input |
DC 9-15V （J2） |
| Dimension |
38mm*38mm |
Deserializer Thechnical Detail
| Thechnical Detail (技术规格) |
| Dual 2 MP FPD-Link III deserializer |
| IC PART NO. |
DS90UB954-Q1 / TDES954RGZT |
| Function |
Deserializer |
| Input Compatibility |
FPD-Link III LVDS / V3Link SerDes |
| Output Compatibility |
MIPI CSI-2 |
| REFCLK |
25MHz |
| Interface |
| MIPI Output |
MIPI CSI-2 2lane ,J9 SupportMIPI CSI-2 4lane ,J7 Support |
| MIPI Output Connector |
FFC socket（J7 / J9） |
| LVDS Input |
FPD-Link III LVDS |
| LVDS Input Connector |
FAKRA Z Compatibility * 2 |
| MPIO |
Up to 7 Multi-function IO |
| Device Functional Modes |
| FPD-Link III Operating Mode |
CSI-2 Mode (DS90UB953-Q1 and DS90UB935-Q1 compatible) |
| Forward Channel Mode |
Synchronous Mode |
| Back Channel Mode |
Synchronous Mode |
| FPD-Link Line Rate |
4.0 Gbps |
| Back Channel Rate |
50 Mbps |
| General |
| Operating Conditions(Bare PCB) |
Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing |
| DC Power Supply |
DC 12V（J1 / J2 Input） |
| POC Power Supply |
DC 9.4V（J3 / J4 Output） |
| Dimension |
75mm*40mm |
