- 支持VEYE-MIPI-327、CS-MIPI-IMX307、CS-MIPI-SC132、VEYE-MIPI-IMX327S、VEYE-MIPI-IMX462、VEYE-MIPI-IMX385图像模组

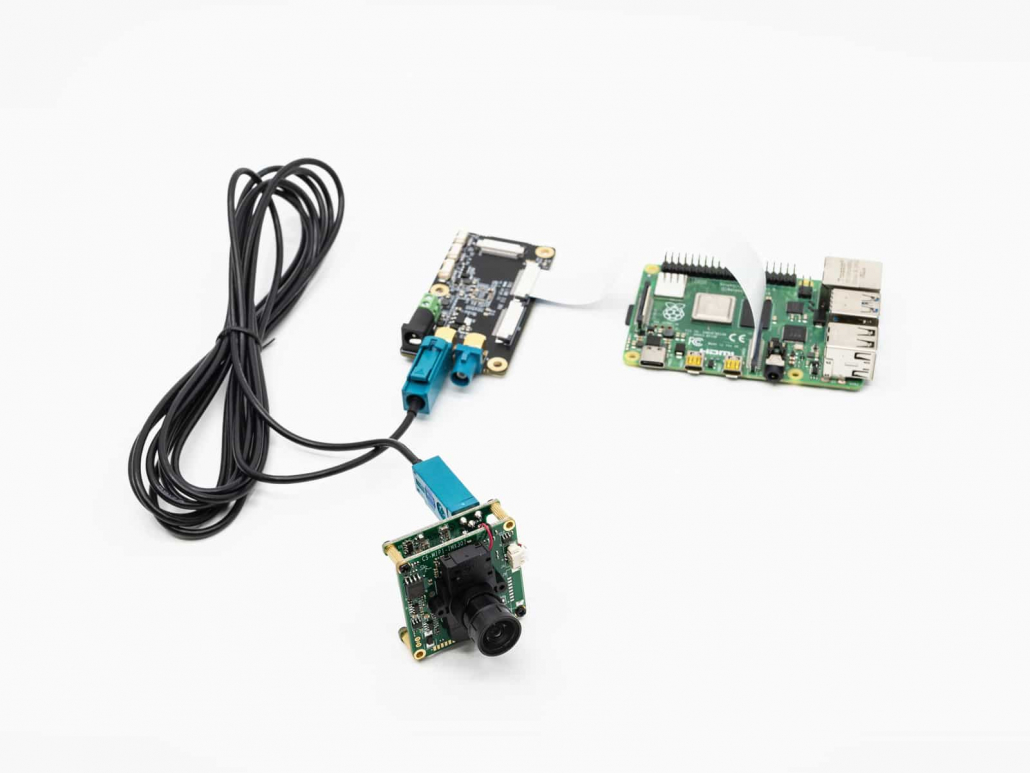

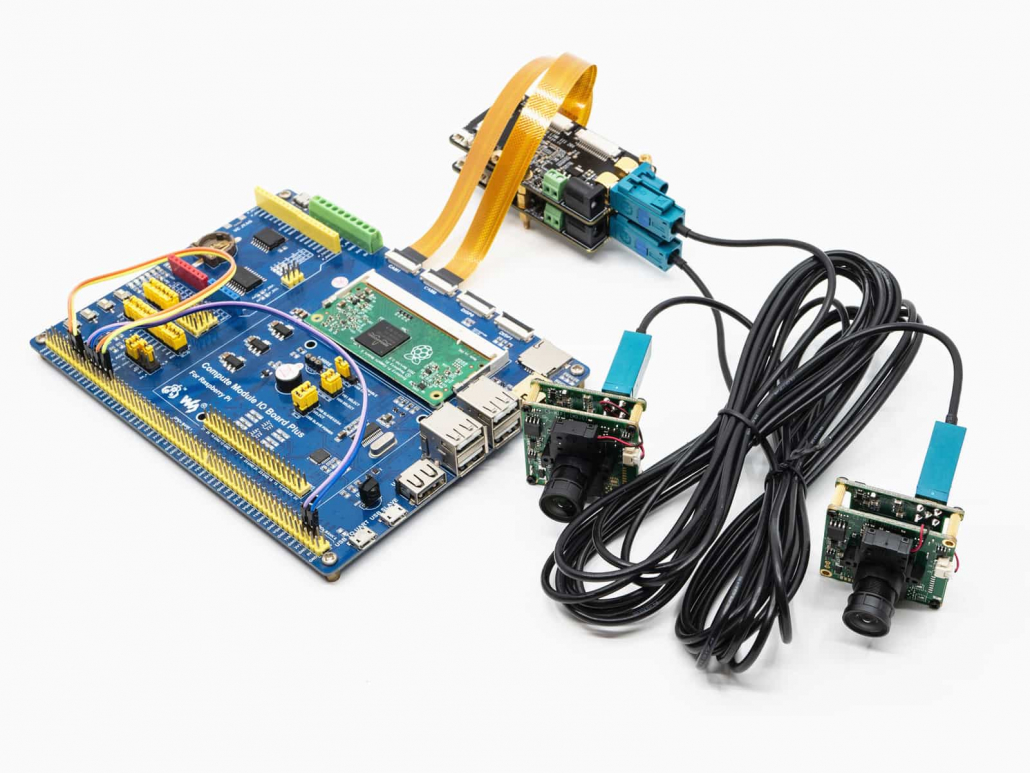

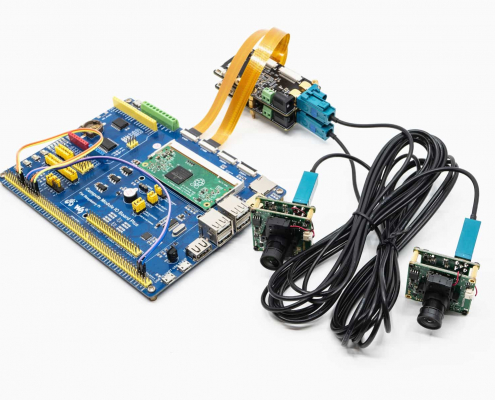

- 支持 Raspberry Pi 3/3B/3B+/4B/Zero/Compute Module

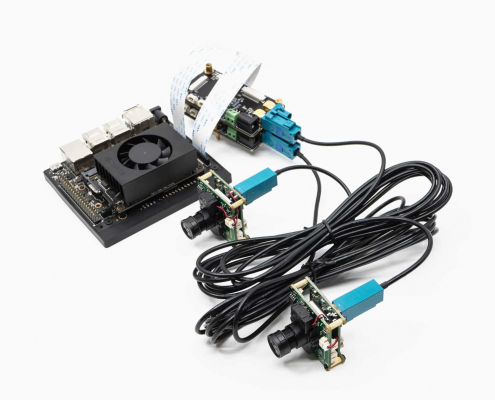

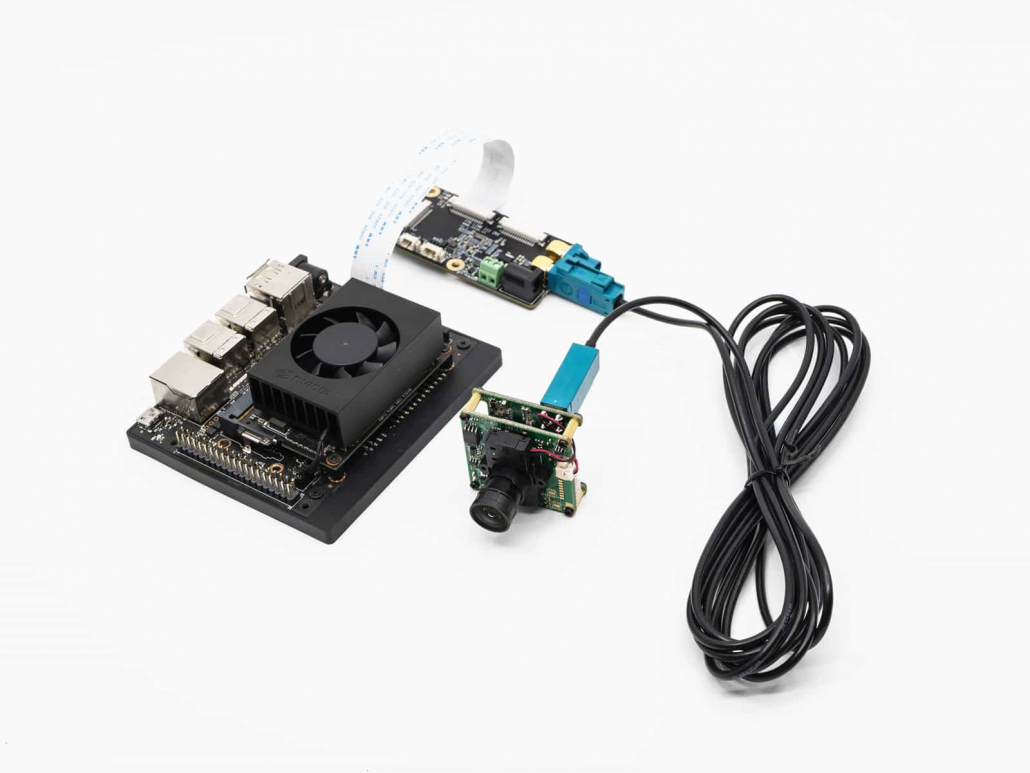

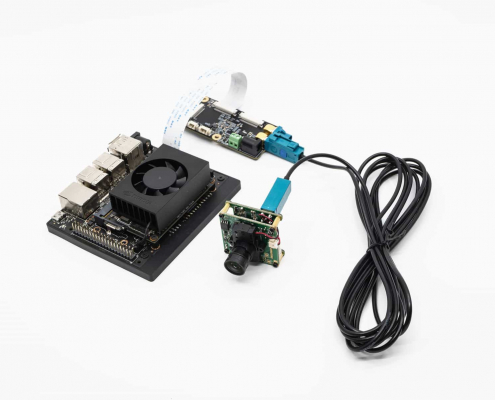

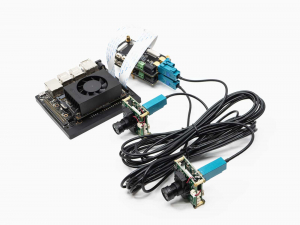

- 支持 Nvidia Jetson Nano / Nano B01 / NX
- 基于 TI DS90UB953-Q1 / TSER953RHBT 和 DS90UB954-Q1 / TDES954RGZT传输方案
- RG174线缆最大可以传输8米
- 产品型号
- CS-FPD-CAM-IMX327
- CS-FPD-CAM-IMX307
- CS-FPD-CAM-SC132
- CS-FPD-CAM-IMX327S
- CS-FPD-CAM-IMX462
- CS-FPD-CAM-IMX385

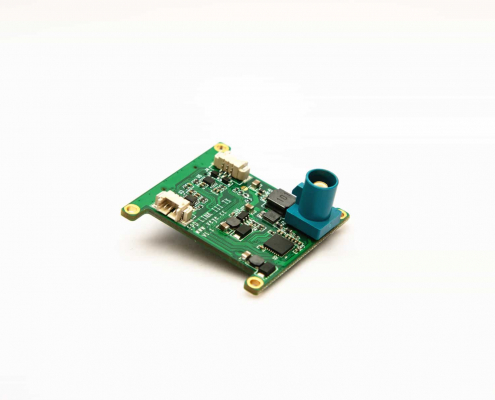

Serializer技术规格
| Thechnical Detail (技术规格) |
| 2 MP MIPI® CSI-2 FPD-Link III serializer |
| IC PART NO. |
DS90UB953-Q1 / TSER953RHBT |
| Function |
Serializer |
| Input Compatibility |
MIPI CSI-2 |
| Output Compatibility |
FPD-Link III LVDS / V3Link SerDes |
| Interface |
|
| MIPI INPUT |
MIPI CSI-2 2lane (800Mbsp/lane max), J5 J6 SupportMIPI CSI-2 4lane (800Mbsp/lane max), J3 Support |
| MIPI INPUT Connector |
FFC socket（J3 J5），B2B Connector（J6） |
| LVDS OUTPUT |
FPD-Link III LVDS (4Gbps data rate) |
| LVDS OUTPUT Connector |
FAKRA Z Compatibility |
| MPIO |
Up to 4 Multi-function IO |
| General |
| Operating Conditions(Bare PCB) |
Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing |
| POC DC Power Supply |
DC 12V |
| Dimension |
38mm*38mm |

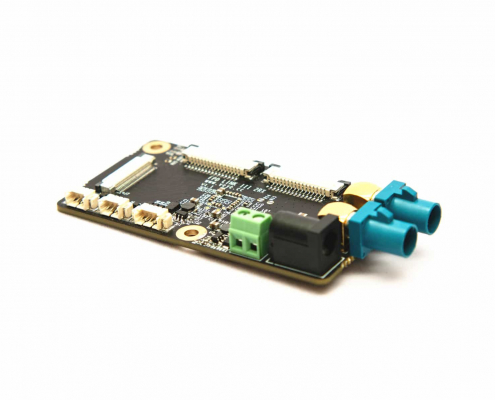

Deserializer技术规格
| 技术规格 |
| Dual 2 MP FPD-Link III deserializer |
| IC PART NO. |
DS90UB954-Q1 / TDES954RGZT |
| Function |
Deserializer |
| Input Compatibility |
FPD-Link III LVDS / V3Link SerDes |
| Output Compatibility |
MIPI CSI-2 |
| REFCLK |
25MHz |
| Interface |
|
| MIPI Output |
MIPI CSI-2 2lane ,J9 SupportMIPI CSI-2 4lane ,J7 Support |
| MIPI Output Connector |
FFC socket（J7 J9） |
| LVDS Input |
FPD-Link III LVDS |
| LVDS Input Connector |
FAKRA Z Compatibility * 2 |
| MPIO |
Up to 7 Multi-function IO |
| General |
| Operating Conditions(Bare PCB) |
Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing |
| DC Power Supply |
DC 12V |
| Dimension |
75mm*40mm |
