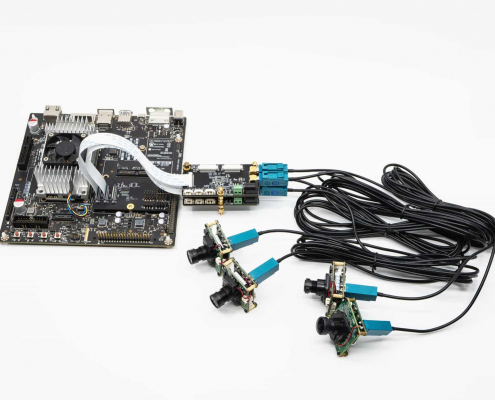

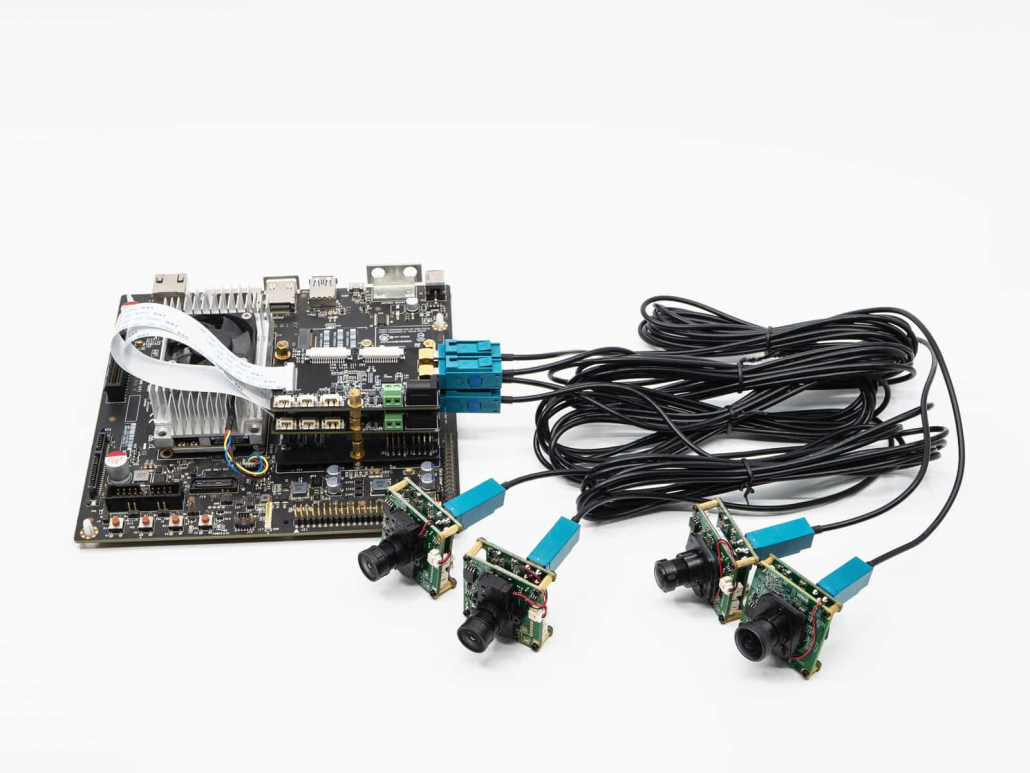

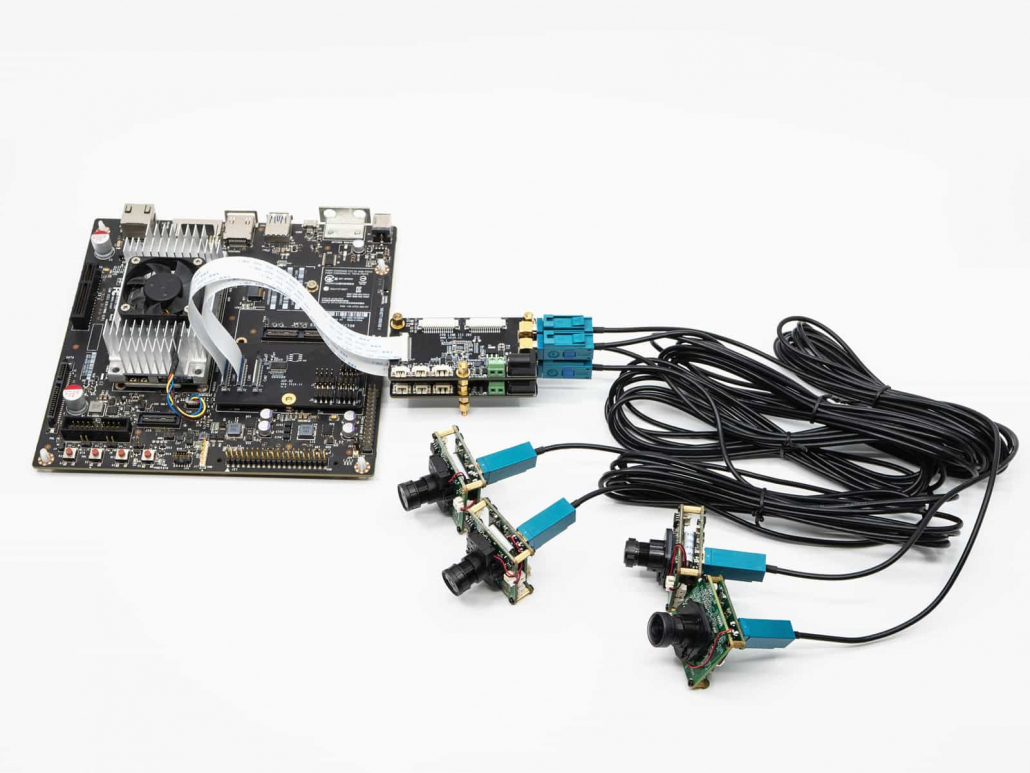

CS-FPD-TX2-nCAM Series Camera DevKit

SupportVEYE-MIPI-327、CS-MIPI-IMX307、CS-MIPI-SC132、VEYE-MIPI-IMX327S、VEYE-MIPI-IMX462、VEYE-MIPI-IMX385 camera module
1 to 6 camera can be choosed
Support Jetson TX2 Developer Kit

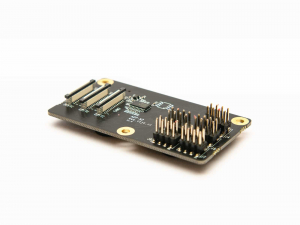

FPD-LINK3-2RX can be placed on top of ADP-N2
base on TI DS90UB953-Q1 / TSER953RHBT and DS90UB954-Q1 / TDES954RGZT
MAX 8 meters transmission distance with RG174
Part NO.
- CS-FPD-TX2-nCAM-IMX327 (n=[1-6]camera)
- CS-FPD-TX2-nCAM-IMX327S (n=[1-6]camera)
- CS-FPD-TX2-nCAM-IMX462 (n=[1-6]camera)
- CS-FPD-TX2-nCAM-IMX385 (n=[1-6]camera)
- CS-FPD-TX2-nCAM-IMX307 (n=[1-6]camera)
- CS-FPD-TX2-nCAM-SC132 (n=[1-6]camera)

CS-FPD-TX2-nCAM-IMX327S

CS-FPD-TX2-nCAM-IMX327S

CS-FPD-TX2-nCAM-IMX462

CS-FPD-TX2-nCAM-IMX385

Document

Serializer Thechnical Detail

Thechnical Detail (技术规格)
2 MP MIPI® CSI-2 FPD-Link III serializer
IC PART NO.	DS90UB953-Q1 / TSER953RHBT
Function	Serializer
Input Compatibility	MIPI CSI-2
Output Compatibility	FPD-Link III LVDS / V3Link SerDes
Interface
MIPI INPUT	MIPI CSI-2 2lane (800Mbsp/lane max), J5 J6 SupportMIPI CSI-2 4lane (800Mbsp/lane max), J3 Support
MIPI INPUT Connector	FFC socket（J3 J5），B2B Connector（J6）
LVDS OUTPUT	FPD-Link III LVDS (4Gbps data rate)
LVDS OUTPUT Connector	FAKRA Z Compatibility
MPIO	Up to 4 Multi-function IO
Device Functional Modes
Clocking Mode	Synchronous Mode， FPD-Link III Clock reference derived from deserializer
FPD-Link III Operating Mode	CSI-2 Mode
Forward Channel Mode	Synchronous Mode
Back Channel Mode	Synchronous Mode
FPD-Link Line Rate	4.0 Gbps （Link with FPD-LINK3-2RX）
Back Channel Rate	50 Mbps （Link with FPD-LINK3-2RX）
General
Operating Conditions(Bare PCB)	Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing
POC DC Power Input	DC 9-15V （J2）
Dimension	38mm*38mm

Deserializer Thechnical Detail

Thechnical Detail (技术规格)
Dual 2 MP FPD-Link III deserializer
IC PART NO.	DS90UB954-Q1 / TDES954RGZT
Function	Deserializer
Input Compatibility	FPD-Link III LVDS / V3Link SerDes
Output Compatibility	MIPI CSI-2
REFCLK	25MHz
Interface
MIPI Output	MIPI CSI-2 2lane ,J9 SupportMIPI CSI-2 4lane ,J7 Support
MIPI Output Connector	FFC socket（J7 / J9）
LVDS Input	FPD-Link III LVDS
LVDS Input Connector	FAKRA Z Compatibility * 2
MPIO	Up to 7 Multi-function IO
Device Functional Modes
FPD-Link III Operating Mode	CSI-2 Mode (DS90UB953-Q1 and DS90UB935-Q1 compatible)
Forward Channel Mode	Synchronous Mode
Back Channel Mode	Synchronous Mode
FPD-Link Line Rate	4.0 Gbps
Back Channel Rate	50 Mbps
General
Operating Conditions(Bare PCB)	Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing
DC Power Supply	DC 12V（J1 / J2 Input）
POC Power Supply	DC 9.4V（J3 / J4 Output）
Dimension	75mm*40mm
