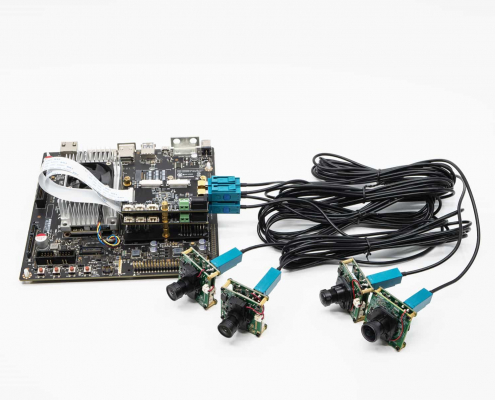

CS-FPD-TX2-nCAM系列摄像头开发套件 | VEYE IMAGING MIPI Camera Modules-VEYE IMAGING

支持VEYE-MIPI-327、CS-MIPI-IMX307、CS-MIPI-SC132、VEYE-MIPI-IMX327S、VEYE-MIPI-IMX462、VEYE-MIPI-IMX385图像模组
1-6组摄像头数量可选
支持 Jetson TX2 Developer Kit
FPD-LINK3-2RX 可在ADP-N2上方叠层放置
基于 TI DS90UB953-Q1 / TSER953RHBT 和 DS90UB954-Q1 / TDES954RGZT传输方案
RG174线缆最大可以传输8米
型号列表
- CS-FPD-TX2-nCAM-IMX327 (n=[1-6]图像模组)
- CS-FPD-TX2-nCAM-IMX327S (n=[1-6]图像模组)
- CS-FPD-TX2-nCAM-IMX462 (n=[1-6]图像模组)
- CS-FPD-TX2-nCAM-IMX385 (n=[1-6]图像模组)
- CS-FPD-TX2-nCAM-IMX307 (n=[1-6]图像模组)
- CS-FPD-TX2-nCAM-SC132 (n=[1-6]图像模组)

资料链接

Serializer技术规格

技术规格
2 MP MIPI® CSI-2 FPD-Link III serializer
IC PART NO.	DS90UB953-Q1 / TSER953RHBT
Function	Serializer
Input Compatibility	MIPI CSI-2
Output Compatibility	FPD-Link III LVDS / V3Link SerDes
Interface
MIPI INPUT	MIPI CSI-2 2lane (800Mbsp/lane max), J5 J6 SupportMIPI CSI-2 4lane (800Mbsp/lane max), J3 Support
MIPI INPUT Connector	FFC socket（J3 J5），B2B Connector（J6）
LVDS OUTPUT	FPD-Link III LVDS (4Gbps data rate)
LVDS OUTPUT Connector	FAKRA Z Compatibility
MPIO	Up to 4 Multi-function IO
General
Operating Conditions(Bare PCB)	Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing
POC DC Power Supply	DC 12V
Dimension	38mm*38mm

Deserializer技术规格

技术规格
Dual 2 MP FPD-Link III deserializer
IC PART NO.	DS90UB954-Q1 / TDES954RGZT
Function	Deserializer
Input Compatibility	FPD-Link III LVDS / V3Link SerDes
Output Compatibility	MIPI CSI-2
REFCLK	25MHz
Interface
MIPI Output	MIPI CSI-2 2lane ,J9 SupportMIPI CSI-2 4lane ,J7 Support
MIPI Output Connector	FFC socket（J7 J9）
LVDS Input	FPD-Link III LVDS
LVDS Input Connector	FAKRA Z Compatibility * 2
MPIO	Up to 7 Multi-function IO
General
Operating Conditions(Bare PCB)	Operating guarantee temperature：-20℃~85℃, Humidity 95% or less, non-condensing
DC Power Supply	DC 12V
Dimension	75mm*40mm
